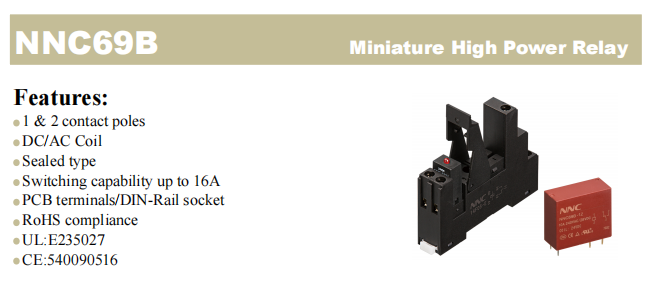

NNC Miniature High Power Sealed Relay NNC69B General Purpose Voltage Relay for Car Charging pile Solar Energy

Brand Name : NNC

Model Number : NNC69B

Certification : CE/TUV/UL/CCC

Place of Origin : China

MOQ : 600pcs

Price : get latest price

Payment Terms : T/T

Supply Ability : 2k pcs 7 days

Delivery Time : 7-14 days

Theory : Power Relay

Contact Material : Silver Alloy

Ambient temperation : -55℃~70℃

Endurance : Mechanical life:10,000,000 times Electrical life:100,000 times

Ambient humidity : 35%-80%RH

Dimension : 29mm×13mm×25.5mm

Weight : approx. 17g/PCS

Rated load : 16A

Installation : PCB or Socket with DIN Rail

Coil power : DC:0.53W AC:1.0VA

Pick-up time : ≤20ms

Release time : ≤10ms

Contact resistance : ≤100mΩ
